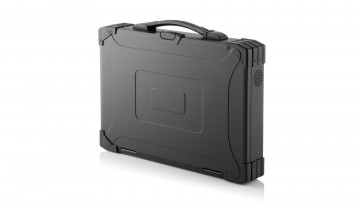

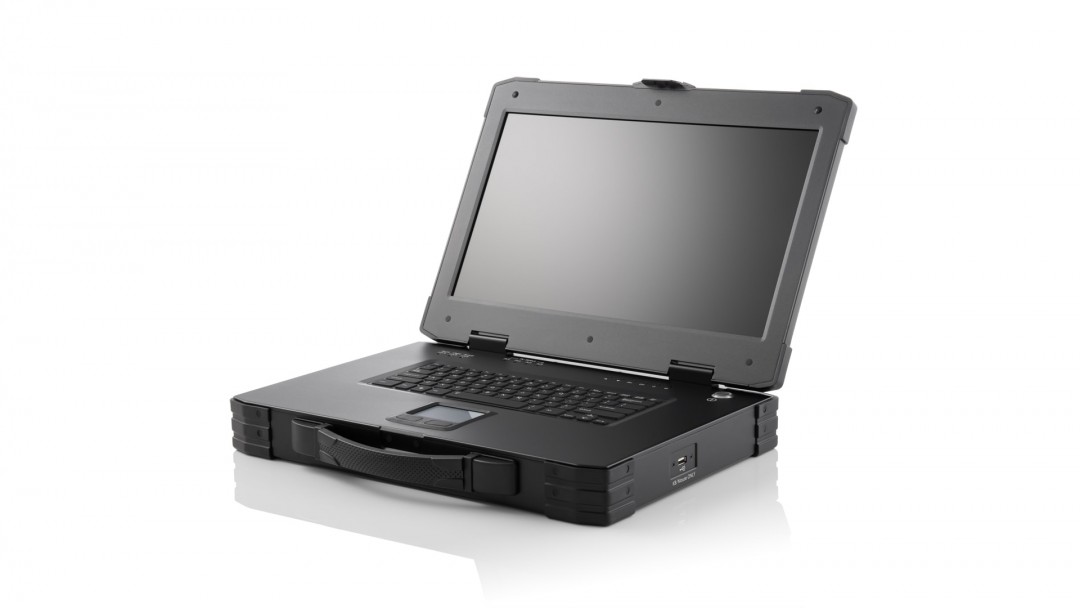

Notebook style portable KVM (Keyboard Video Mouse) system
The PMK enables users access up to four computers, servers, or KVM switches at the same time. Two connect with the traditional KVM cables and two connect with the help of the CAT 5 transmitter up to 500 feet away with superior auto-adjust RGB gain/delay control capability.
The CAT5 USB Extender is a pair of transmitters and receivers for high-density applications where you want full use of keyboard, mouse, and monitor, but there is no room for a server nearby or for applications where you want to put all computers in a safe place.
Set your PMK at a convenient and suitable control field. With this unit, you can remotely control systems up to 500 feet away.
Technical Specifications
| Product | PMK |
|---|---|
| Display | 17.3" Full HD 1920 x 1080 |

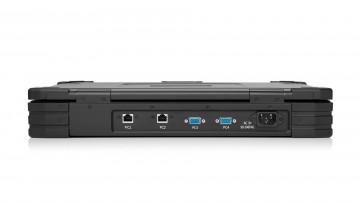

| Ports | 2x RJ-45 Ports (CAT5), 2x HDDB15 ports, 1x USB, 2x local host ports; connecting via 6’ VGA/USB cable, 2x remote host ports; support remote hosts up to 490’ away |
| Temperature | Operating: 0 ~ 50°C, Storage: -20 ~ 60°C |
| Humidity | 0 ~ 80%, Non-condensing |
| Dimensions | With Handle: Height: 17" (431.8mm), Depth: 12" (304.8mm), Height: 3" (76.2mm) Without Handle: Height: 17" (431.8mm), Depth: 13", Height: 3" (76.2mm) |
| Keyboard & Mouse | USB Keyboard & Mouse Emulation |
| Port Selection | Push Button |
| Housing | Aluminium |
| Included Accessories | 4x VGA/USB KVM cables, 2x Cat 5 cables, 2x transmitters with power adapter, 1x Power cord |
| Power Supply | 110-240VAC |
| Customization | Military connectors, custom I/O, trackball, dust filter, and more. |
Configuration Options
The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.
Contact Sales| Product |
PMK
|
SMK 920
|
SMK 920 HD
|
|---|---|---|---|
| Display | 17.3" Full HD 1920 x 1080 | 17" or 19", 5:4 Display at 1280 x 1024 Resolution | 17.3", 16:9 Display at 1920 x 1080 Resolution |
| Ports | 2x RJ-45 Ports (CAT5), 2x HDDB15 ports, 1x USB, 2x local host ports; connecting via 6’ VGA/USB cable, 2x remote host ports; support remote hosts up to 490’ away |
D-Sub 15 pin single-port KVM | Option 1: Single Port Option 2: 8 ports |
| Humidity | 0 ~ 80%, Non-condensing | N/A | N/A |
| Dimensions | With Handle: Height: 17" (431.8mm), Depth: 12" (304.8mm), Height: 3" (76.2mm) Without Handle: Height: 17" (431.8mm), Depth: 13", Height: 3" (76.2mm) |
Height: 1U - 1.73" (44mm) Width: 17.42" (442.5mm) Depth: 19.68" (500mm) |
Height: 1U - 1.73" (44mm) Width: 17.6" (447mm) Depth: 16.1" (409mm) |
| Included Accessories | 4x VGA/USB KVM cables, 2x Cat 5 cables, 2x transmitters with power adapter, 1x Power cord |
N/A | N/A |
| Power Supply | 110-240VAC | 60W, 100-240VAC, 50/60Hz | 110-220VAC input |
